Exceptional possibilities
The LUMiSpoc® offers these highlights
- High-precision characterisation of single particles
- Nanoparticle concentration
- Large measuring range (particle size & concentration 40 nm to 8 µm)
- Easy cleaning
- Multimodal & polydisperse size distributions with high resolution
- Sample volume only 250 µl
- Compact design
Extremely high classification
Very high resolution of monomodal, multimodal and polydisperse size distributions
Very high resolution of monomodal, multimodal & polydisperse size distributions
extremely high classification
high counting rate (high-frequency digitisation, pulse analysis & classification)
Large dynamic range (particle sizes from 40 nm - 8 µm) without range switching or component changes
Short measurement time
Easy operation (measurement, rinsing)
Small sample volume
Touch display with embedded PC & server/browser based software
One-point calibration by reference particles

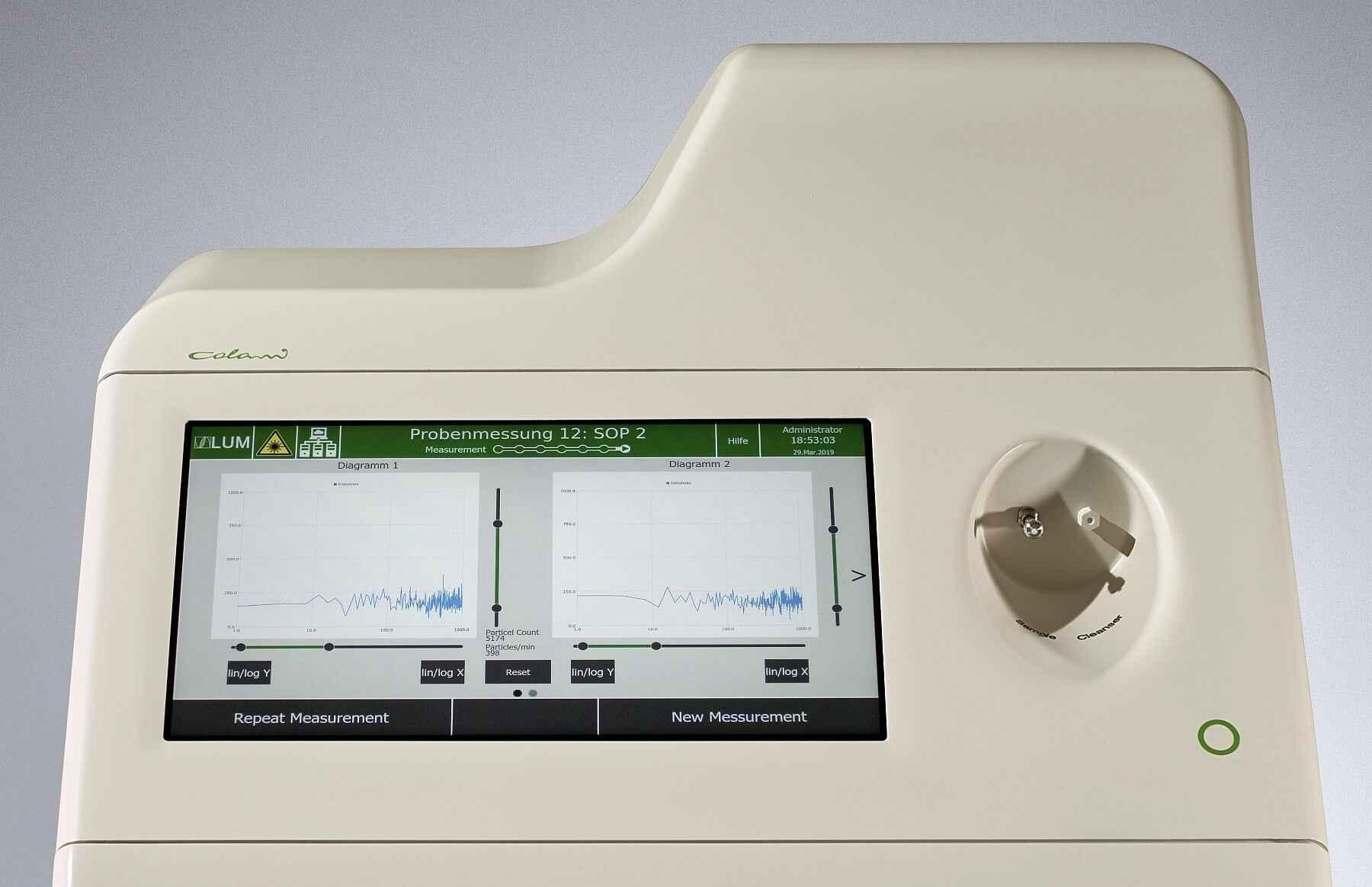

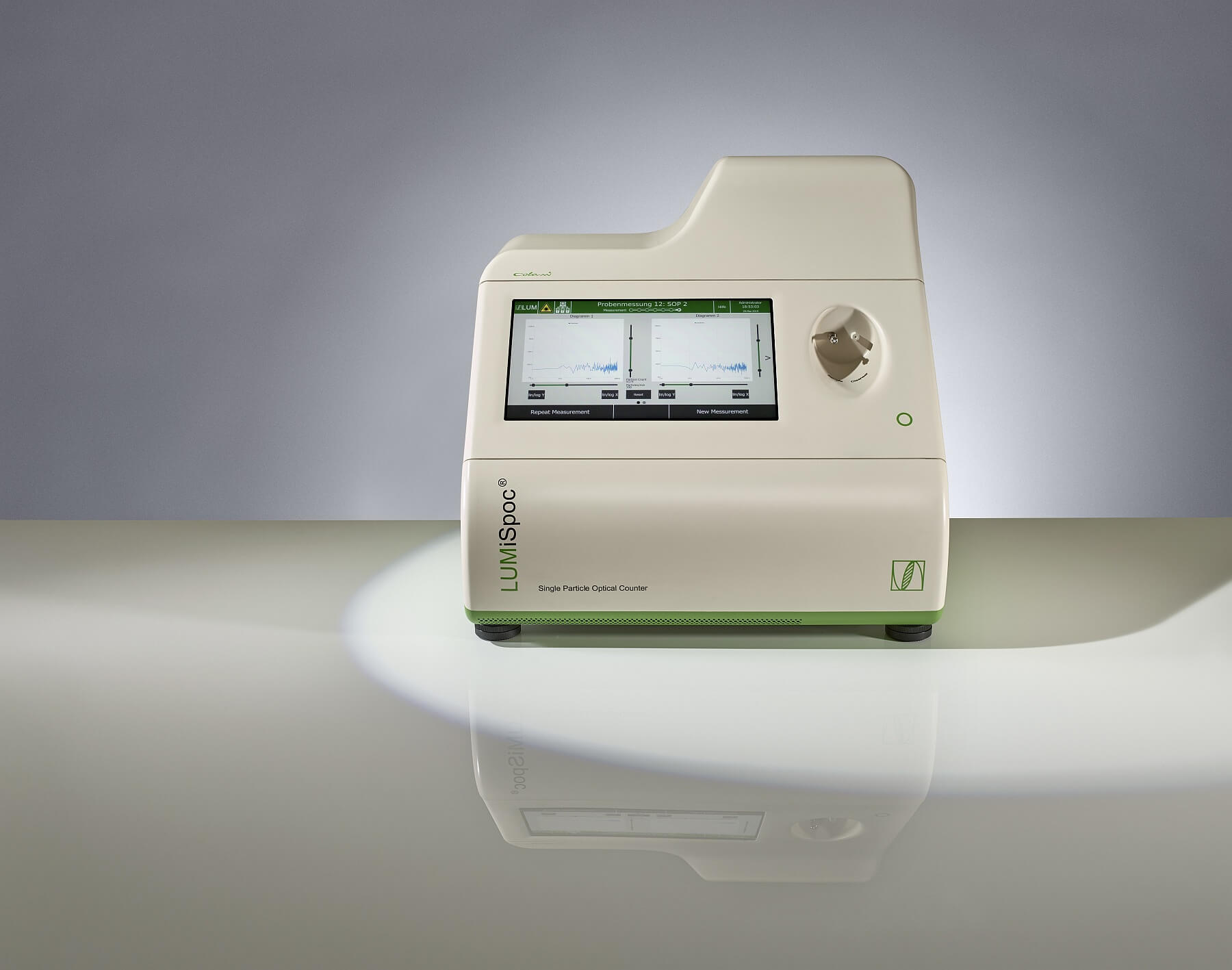

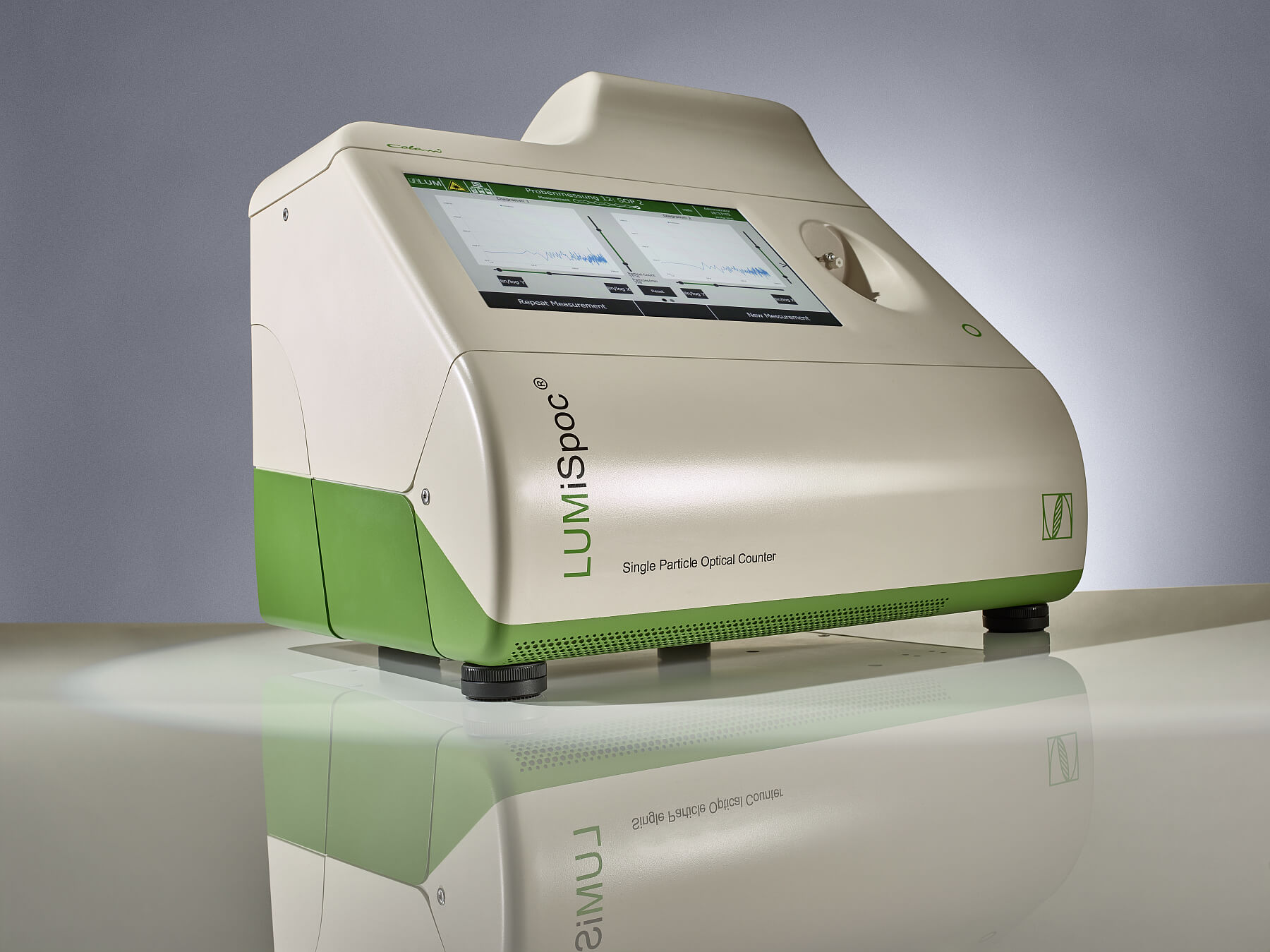

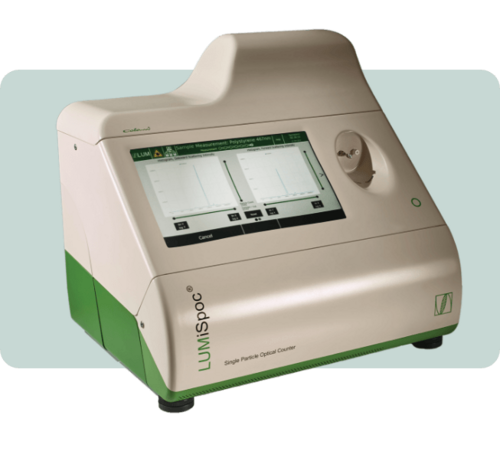

LUMiSpoc® - the new standard in nanoparticle counting
An advanced single particle analysis system
The LUMiSpoc® is a highly advanced single particle analysis system, similar to a flow cytometer, that measures particle size distribution and particle concentration of nano- and microparticles in suspensions and emulsions with an unparalleled resolution and dynamic range.
The instrument uses the patented Single Particle Light-Scattering Technology®, a technology which records light that is scattered into into forward and sideward directions by single nano- and micro particles while passing a laser beam of a special beam cross-section.
It enables you to get a deep insight into complex nano- and submicro-particulate systems, which helps you to design tailored particles and dispersions.
International norms and guidelines
THE LUMiSpoc® MEETS THE FOLLOWING STANDARDS
ISO 21501-2
MATERIAL OVERVIEW
The following materials can be analyzed with the LUMiSpoc®
| Nanoparticle design Number-based particle concentration Number-based size distribution Classification of nanomaterials Agglomeration & flocculation kinetics Protein aggregation Coalescence/Ostwald ripening Coarse grain fractions |
Membrane testing/cut-off Homogenisation Functionalised particles Reference particles CMP slurries Biological samples and many more materials... |
Download & Technical Data
Technical Data LUMiSpoc®
| Particle size range | 40 nm to 400 nm (sideward scattering) |
| 300 nm - 8,000 nm (forward scattering) | |
| Min. size resolution (x < 1 µm) | < 10 nm |
| Particle concentration range | 103 ml-1 to 109 ml-1 |
| Counting rate | up to 10,000 per second |
| Typical measurement time | 1 min |
| Light source | Diode laser, violet, adjustable |
| Particle counting precision | < 2 % |
| Sample volume | 250 µl |
| Conformity | ISO 21501-2 |
| Dimensions (W x H x D), Weight | 60 cm x 52 cm x 59 cm, 40 kg |
| Power supply | 24 V DC, 220W |
