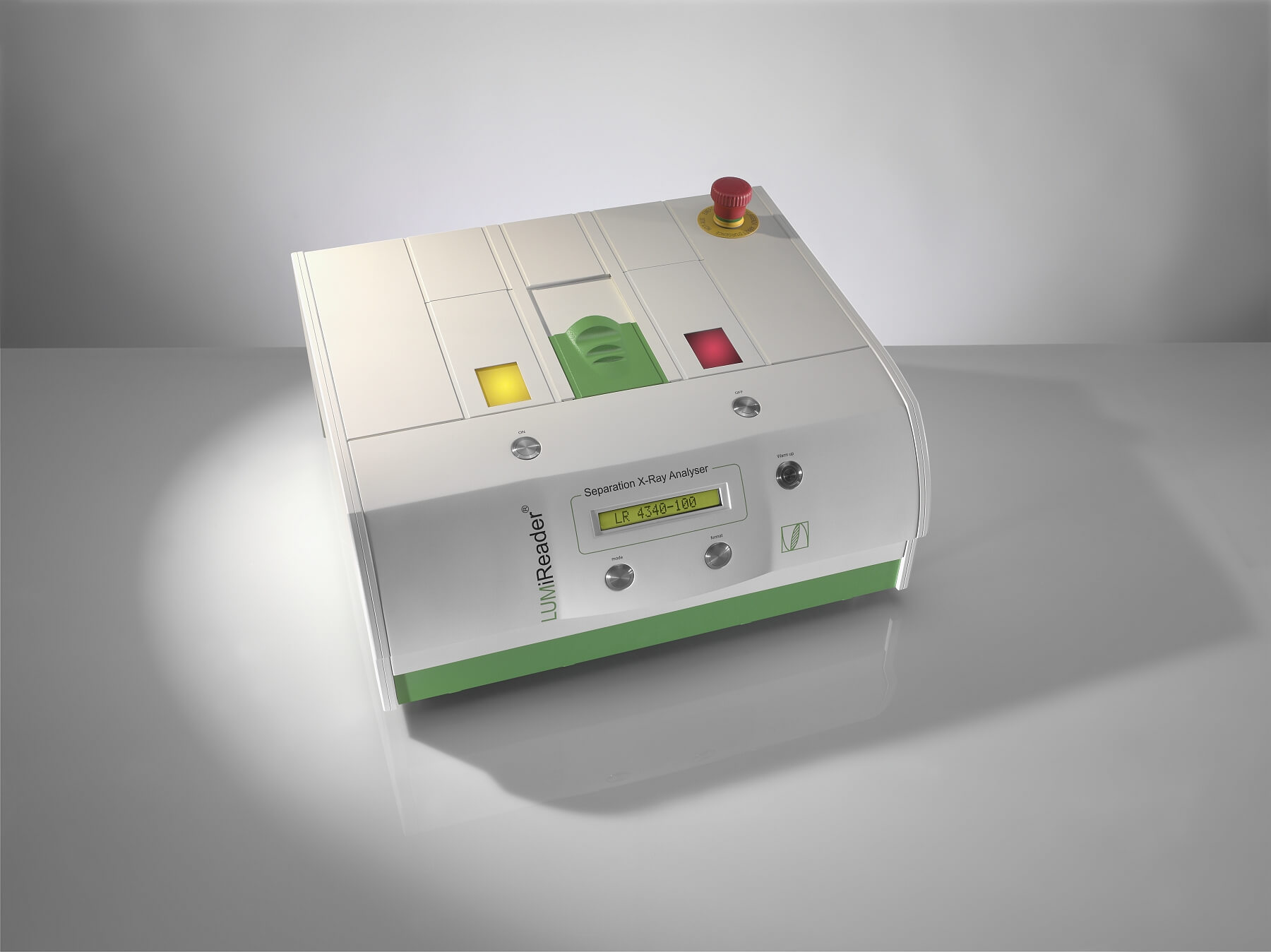

LUMiReader® X-Ray

Illuminates even highly concentrated dispersions and emulsions

Real-time, non-invasive and non-destructive



send enquiry

Exceptional possibilities

THE LUMIREADER® X-RAY MASTERS THESE KINDS OF ANALYSES

  • Phase separation at any concentration
  • Homogeneity of emulsions, suspensions and powders
  • Stability testing at highest concentration
  • Pigment segregation
  • Nano detection in supernatants
  • Dispersibility
  • In-situ sediment & cake structure analysis
  • Sediment profiling
  • From transparent to opaque dispersions
  • Foam drainage
  • Solidosity
  • Dewaterability & consolidation

In-situ analysis of transparent & opaque particle systems

No dilution of emulsions or suspensions

Signal does not depend on particle shape

See/understand complex dispersion behaviour

Study the various instability mechanisms

High resolution of phase separation of multicomponent systems

Detect concentration gradients within phases and sediment

Determine mean and space resolved packing sediment densities

Endless monitoring of sample behaviour for long-time storage information

Use any continuous phase of dispersing agent

Real time, non-invasive and non destructive

High-end analyser for QC, process monitoring and R & D

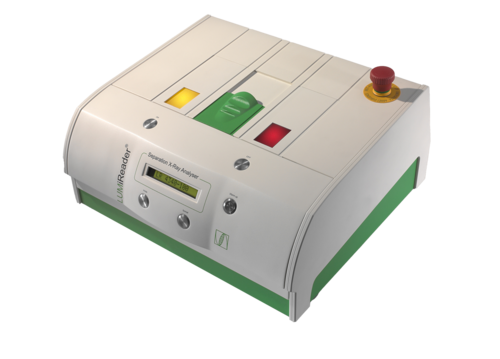

LUMiReader® X-Ray – Illuminating even the most concentrated samples

Maximum comparison precision and no material data such as viscosity or density required

The LUMiReader X-Ray is the first dispersion analyser designed for one purpose only: to study dispersability, stability, separation, and consolidation phenomena for completely transparent to completely opaque emulsions, suspension, sludges, slurries, foams and powders in real-time. For the first time ever, illuminate your sample instantaneously from top to bottom. Solve your most challenging dispersion problems with complete insight. Go places light cannot.

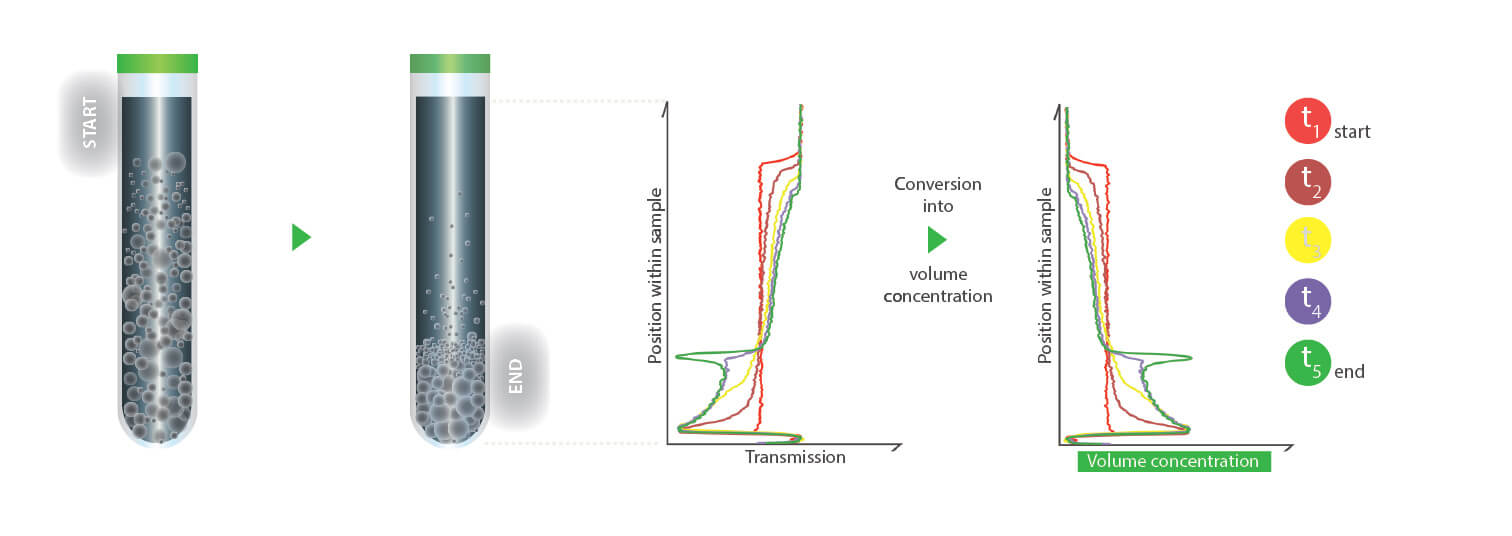

Our patented solution combines X-ray vision with the proven STEP-Technology®, permitting highest spatial resolution, short sampling intervals and powerful detection technique. The LUMiReader X-Ray employs monochrome and parallel X-rays with the help of a special crystal.

More than 1,600 detectors record the transmitted beam, giving an unprecedented resolution over the entire sample cell of 20 mm height. Kinetics of instantaneous recorded transmission profiles across your whole sample are converted into stability and separation rates. Particle concentration, sediment packing density and X-ray attenuation can also be calculated based on the extinction profiles.

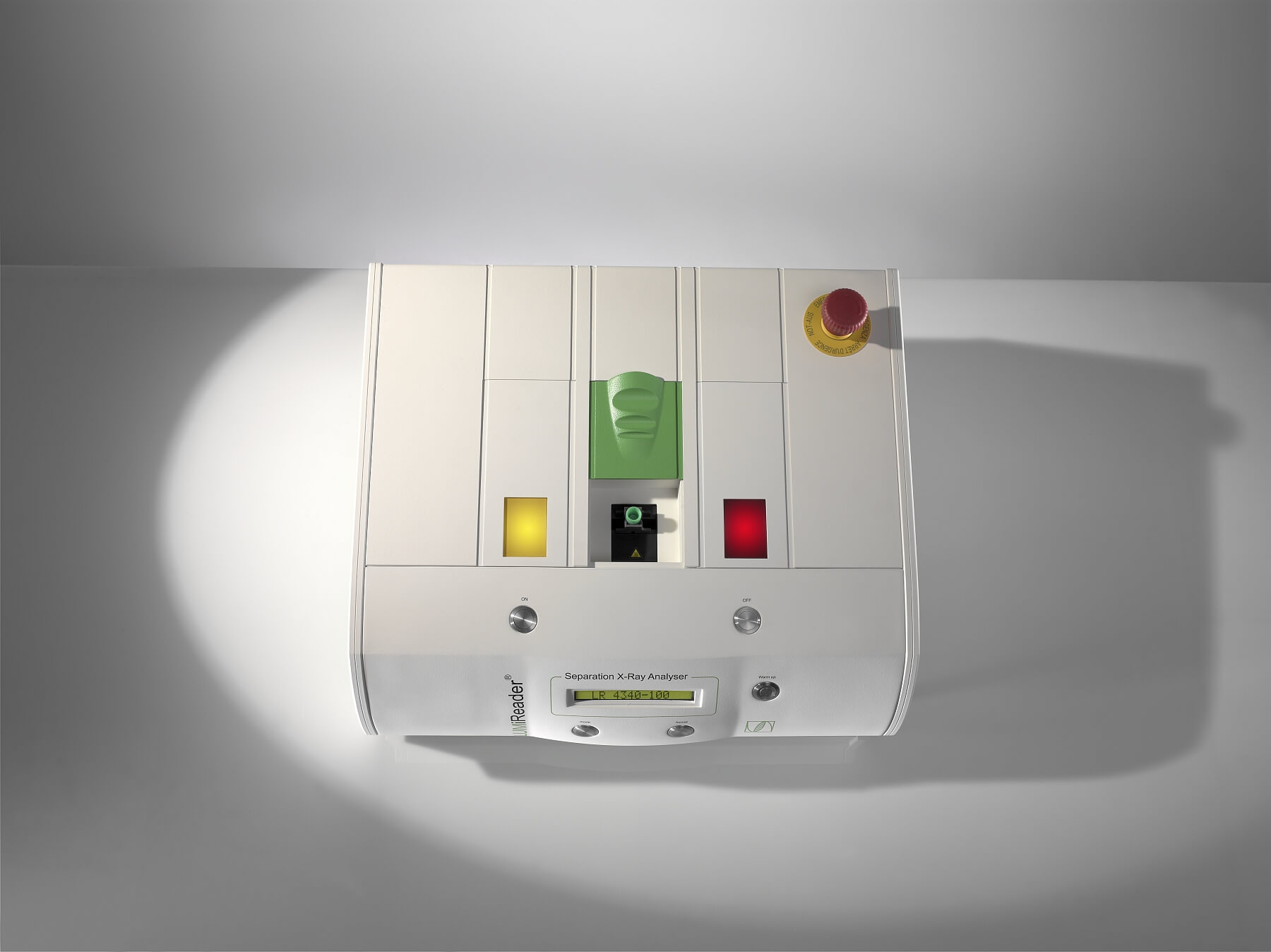

User protection

Safety features

A full protection security circle certified by PTB – the national metrology institute providing scientific and technical services and BfS - Federal Office for Radiation Protection guards the user so anyone can employ the instrument free of risk and without worries about the X-ray radiation. No specific training course about x-ray instrumentation, nor any special operation licenses are required by the user.

A thick lead layer shields the environment from the X-ray exposure inside the apparatus. Because of this and various other safety designs, there is no detectable energy dose outside the instrument. State of the art interlocks sentinelling the sample lid position and the X-ray tube shutter action. Opening the lid during a measurement causes an immediate shut down of the shutter and the X-ray source, triggered by the sentinel circuit independet from software and user.

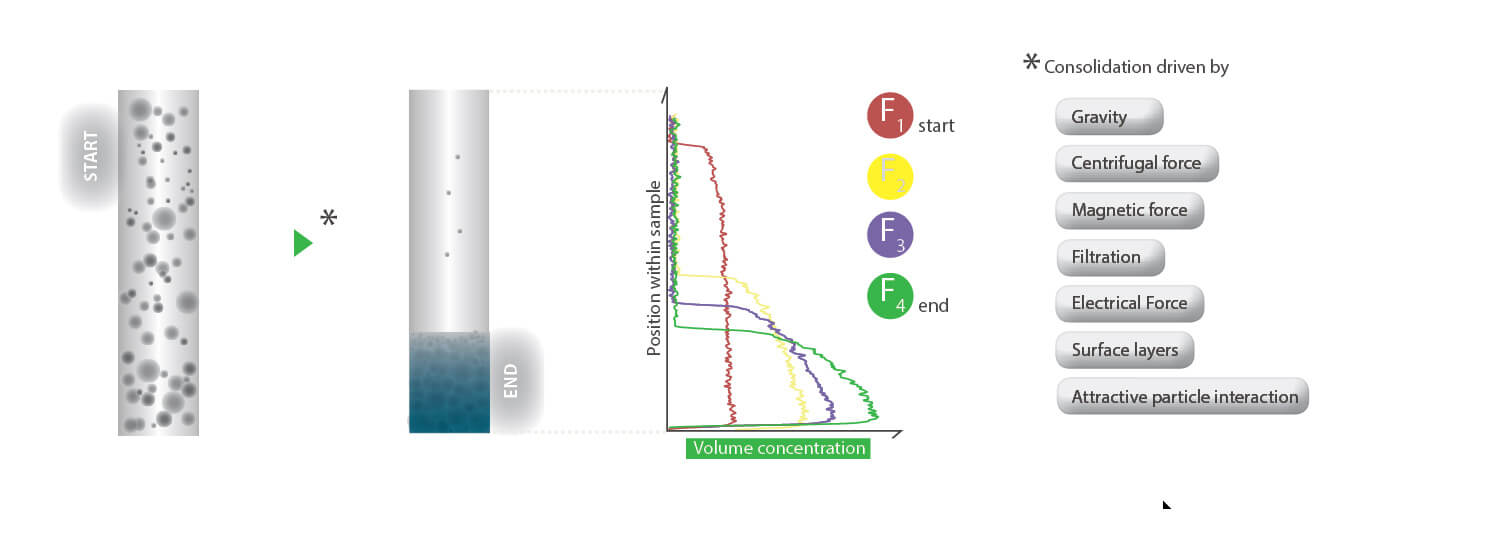

The obtained Space- and Time-resolved Extinction Profiles allow you to measure and understand particle stability, phase separation, and sediment consolidation in systems that where up to now, unknown frontiers of science and technology.

You now can optimize your formulation, measure its stability, and perform accurate shelf life tests, regardless of the shape or concentration of your dispersed particles and droplets. In-situ, real-time, non-invasive and non-destructive.

Typical applications are ceramics, cosmetics, pharmaceutics, paint & pigments, construction materials and fillers, as well as mining and petrol industry dealing with complex emulsions, slurries and sludges.

No more dilutions, no more guess work, no more unexpected surprises. Analyse and understand your sample as is, no matter how opaque or concentrated your formulation is.

For all those instances where you need to understand opaque dispersions, foams, emulsions, or clear microemulsions where dilution is impossible or has unknown side-effects and consequences there is a solution now, and you are looking right at it.

There are many claims out there about the ability to analyze concentrated systems. When pressed however, it turns out that what is concentrated to one person is dilute to another. With that in mind, and wanting to avoid any confusion, all we can state unequivocally is that the LUMiReader X-Ray was designed with one goal in mind: to allow you to analyze and understand concentrated and totally opaque emulsions and suspensions.

How concentrated? As high as you want to go. As opaque as you want it to be. Top to bottom, instantaneously. Yes. Really. No other technology can do this. It is not even close.

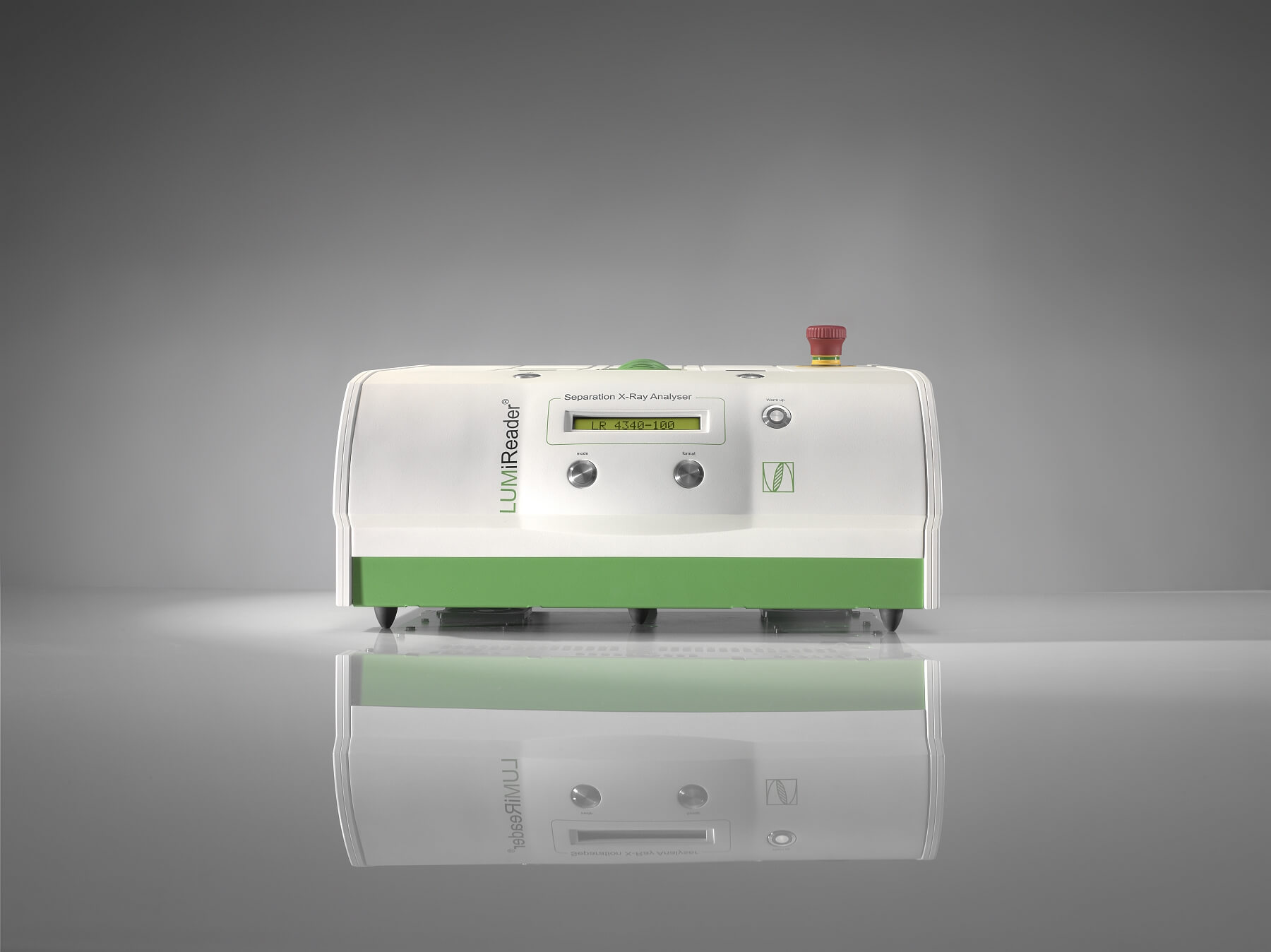

The LUMiReader X-Ray is simple to operate. It comes certified, factory pre-calibrated and is ready-to-go.

Comes with state-of-the-art software SEPView.

The LUMiReader X-Ray comes certified, factory pre-calibrated and is ready-to-go.

International norms and guidelines

THE LUMiReader® X-Ray MEETS THE FOLLOWING STANDARDS

CFR 21 Part 11

ISO 18747-1

ISO/TR 13097

ISO/TR 18811

Grafik Karriere

MATERIAL OVERVIEW

The following materials can be analyzed with the LUMiReader® X-Ray

Abrasives
Batteries
Carbon black
Catalysts
Coated particles
Cosmetics
Ceramics
Construction materials
Lubricants
Magnetic particles
  Microemulsions
Metals
Mineral powders
Nanosuspensions
Oil sands
Paints
Pigments
Rigid foams
Silicone emulsions
Solid electrolytes



grafik_info

APPLICATION SAMPLES

Examples of X-ray measurements single and combined with centrifugal consolidation

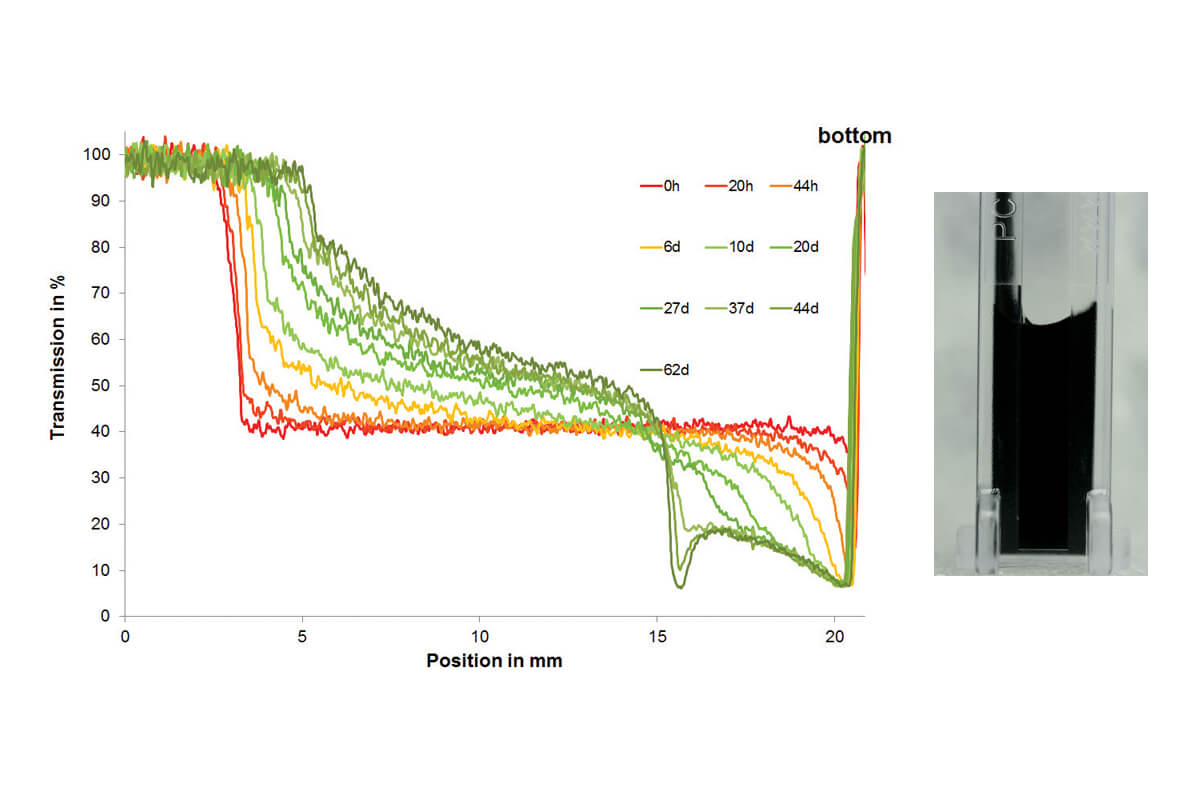

X-ray phase detection of ongoing clarification and sediment growth (left) within even opaque systems (right)

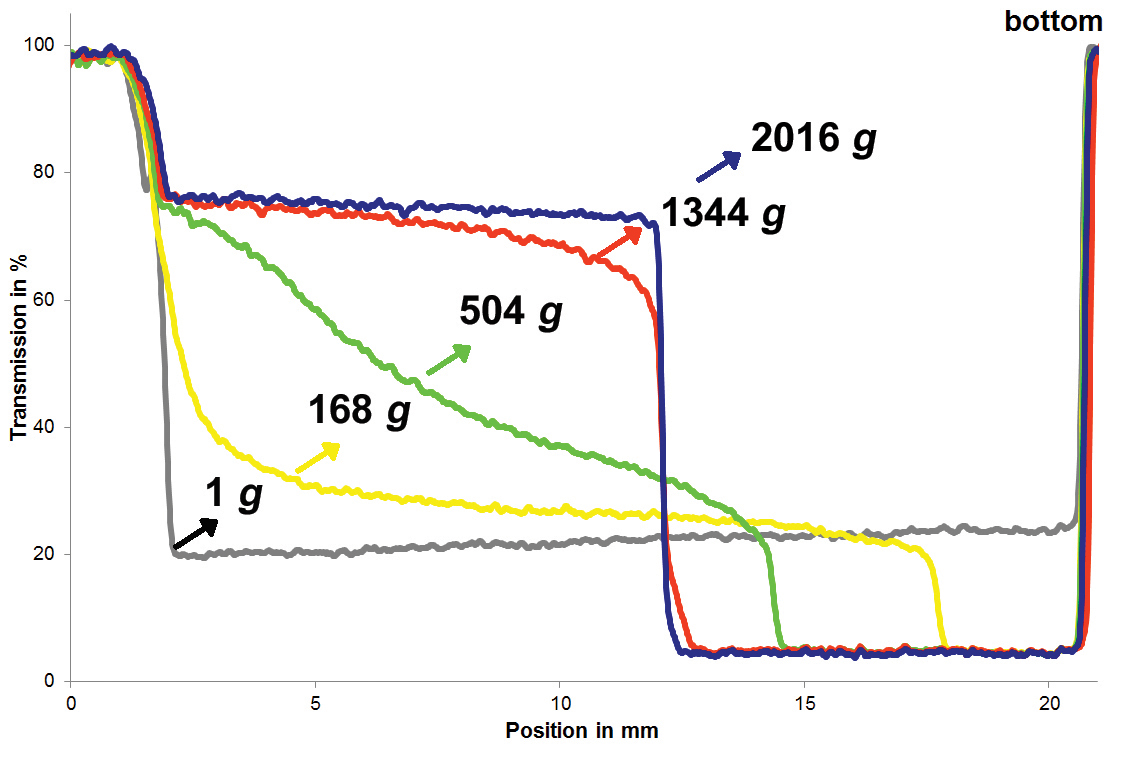

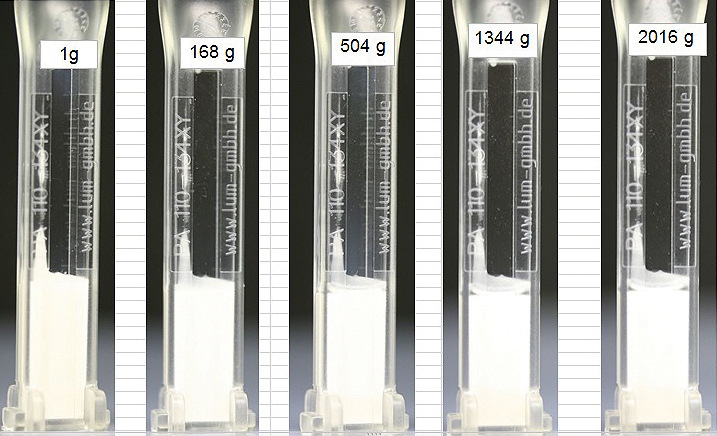

Packing density gradients of lime after centrifugal consolidation

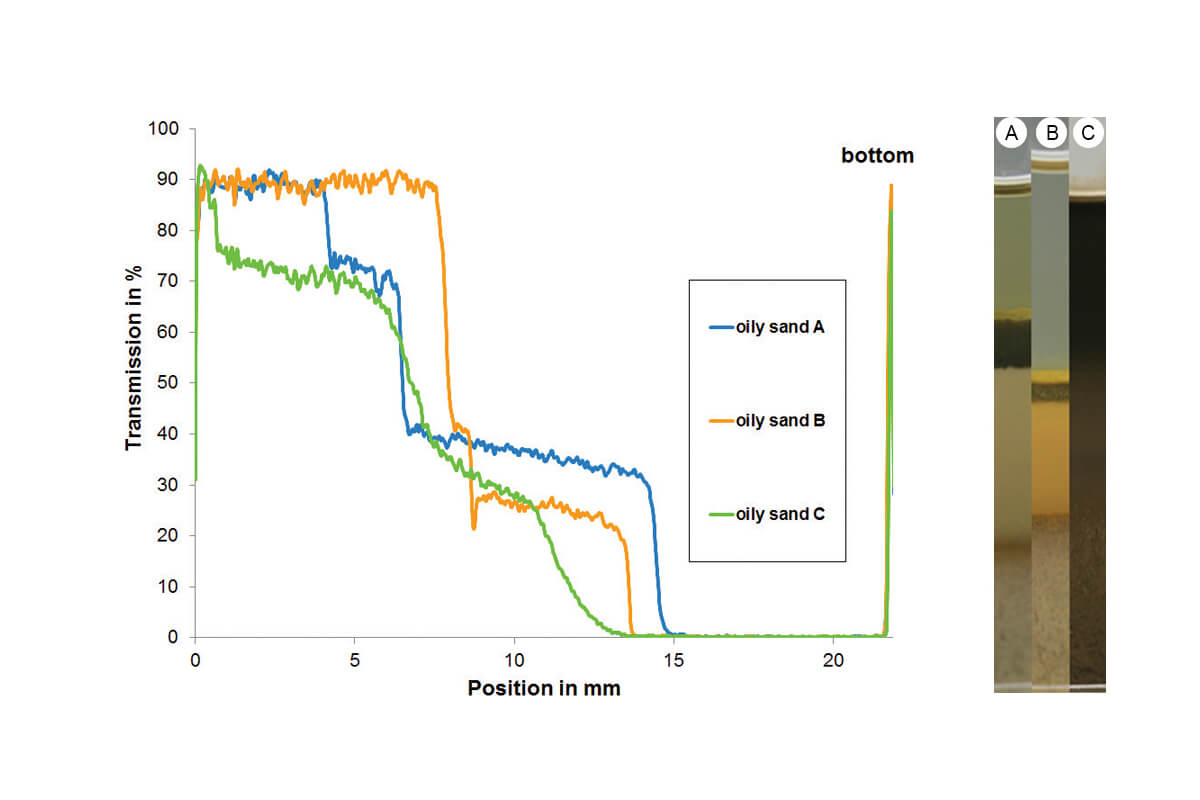

Visual appearance and x-ray intensity profiles of oil sands after separation

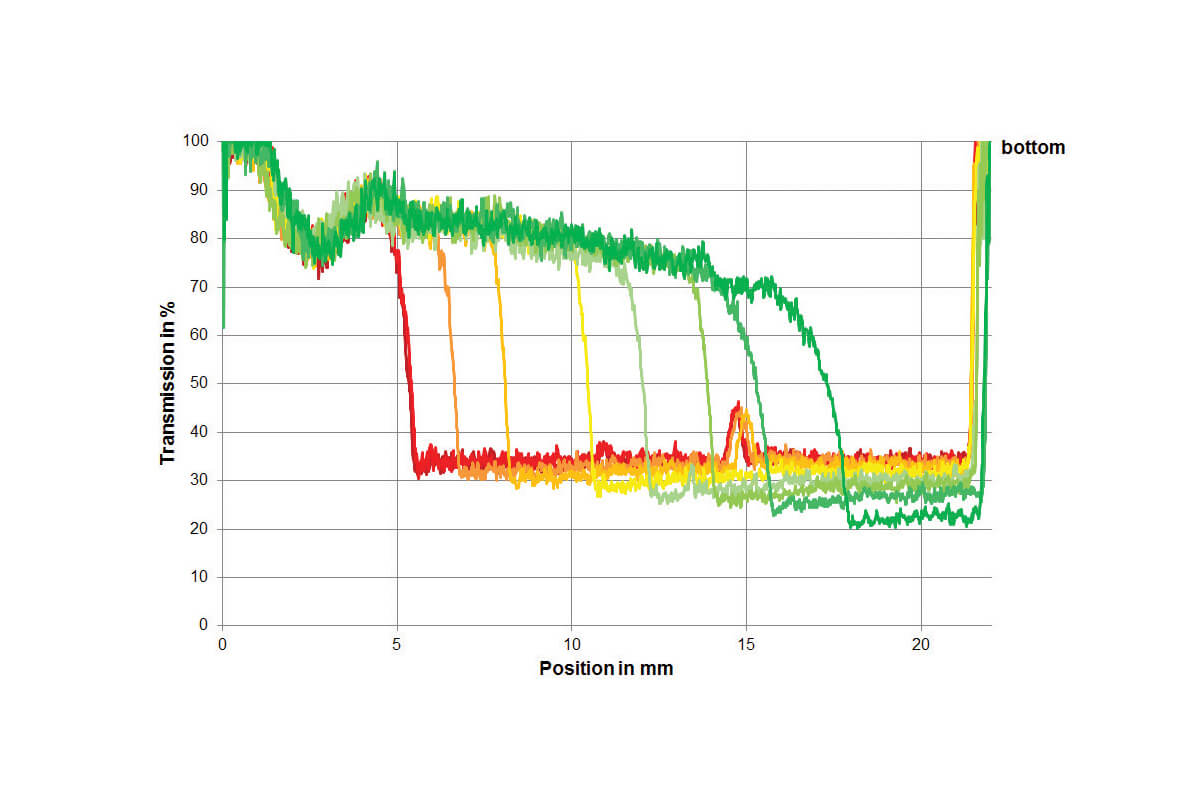

Phase and sediment formation of polymer dispersion

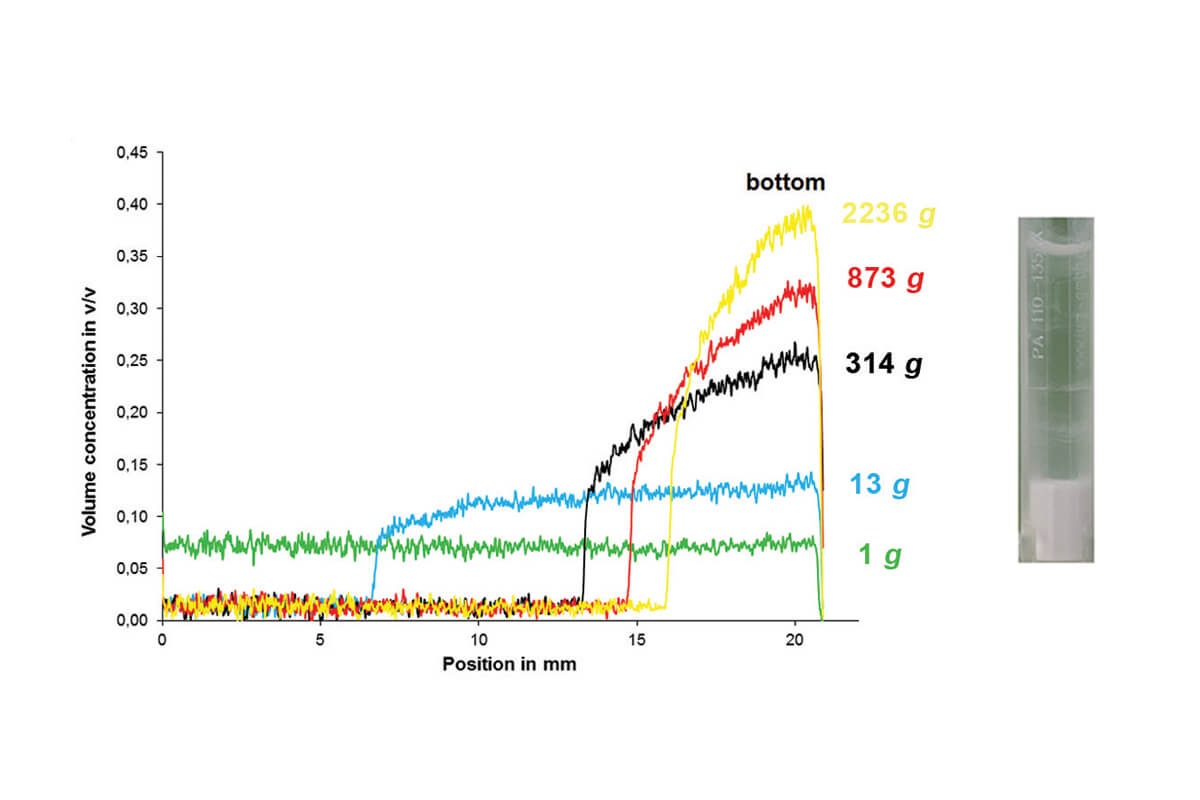

Phase separation of MoS2-Graphit suspension

Download & Technical Data

Technical Data LUMiReader® X-Ray

Measurement principle monoenergetic X-ray attenuation
Phase separation high concentrated dispersions (transparent or opaque)
In situ sediment analysis 3 s to unlimited
Stability analysis from seconds to days or weeks
Consolidation measurement also in combination with LUMiFuge & LUMiSizer
Conformity ISO/TR 13097; ISO/TR 18811; ISO 18747-1; CFR 21 Part 11
Samples suspensions, Emulsions, Suspo-Emulsions, Sludges, Slurries, Foams & Powders
Channels 1 sample
Volume 0.3 ml to 1.6 ml
Concentration Up to 100 Vol%
Particle any shape, from nano to microscale, no density restriction
Source Monoenergetic X-ray, 17.48 keV, max 20 W at 40 kV, air cooled
Monochromator Graphite
Disturbance free No moving parts
Dimensions (WxHxD), Weight 47 cm x 24 cm x 44 cm, 25 kg
Power supply 24 V, 220 W, Adapter (100 V to 240 V) included
Safety different materials, optical path 1 mm to 10 mm
Radiation control requirements none; instrument can be used anywhere
