LUMiFrac®

CAT-Technology: the new standard in adhesion and cohesion testing

Up to 8 samples simultaneously



SEND ENQUIRY WATCH VIDEO

Exceptional possibilities

THE LUMiFrac®MASTERS THESE KINDS OF ANALYSES

  • Centrifugal adhesion testing
  • Shear & tensile pull-off test
  • Bonding strength
  • Adhesive strength
  • Coating strength
  • Foil & composite strength
  • Failure patterns
  • Fatigue & climate tests
  • Surface treatment testing
  • High sample flexibility, no clamping
  • Multisample test

Analyse up to 8 samples under identical conditions

NO NEED TO CLAMP THE SAMPLE - SIMPLY INSERT AND START

Easy preparation of your test specimen

Up to 8 samples are analysed under identical conditions

No sample clamping at all - simply insert and start

Variable testing speeds

Flexible load cycling

Wide range of test forces (0.1 N up to 6.5 kN)

Test specimen for determination of tensile and shear strength

Testing under various temperatures

Cost-saving multi-use of test stamps

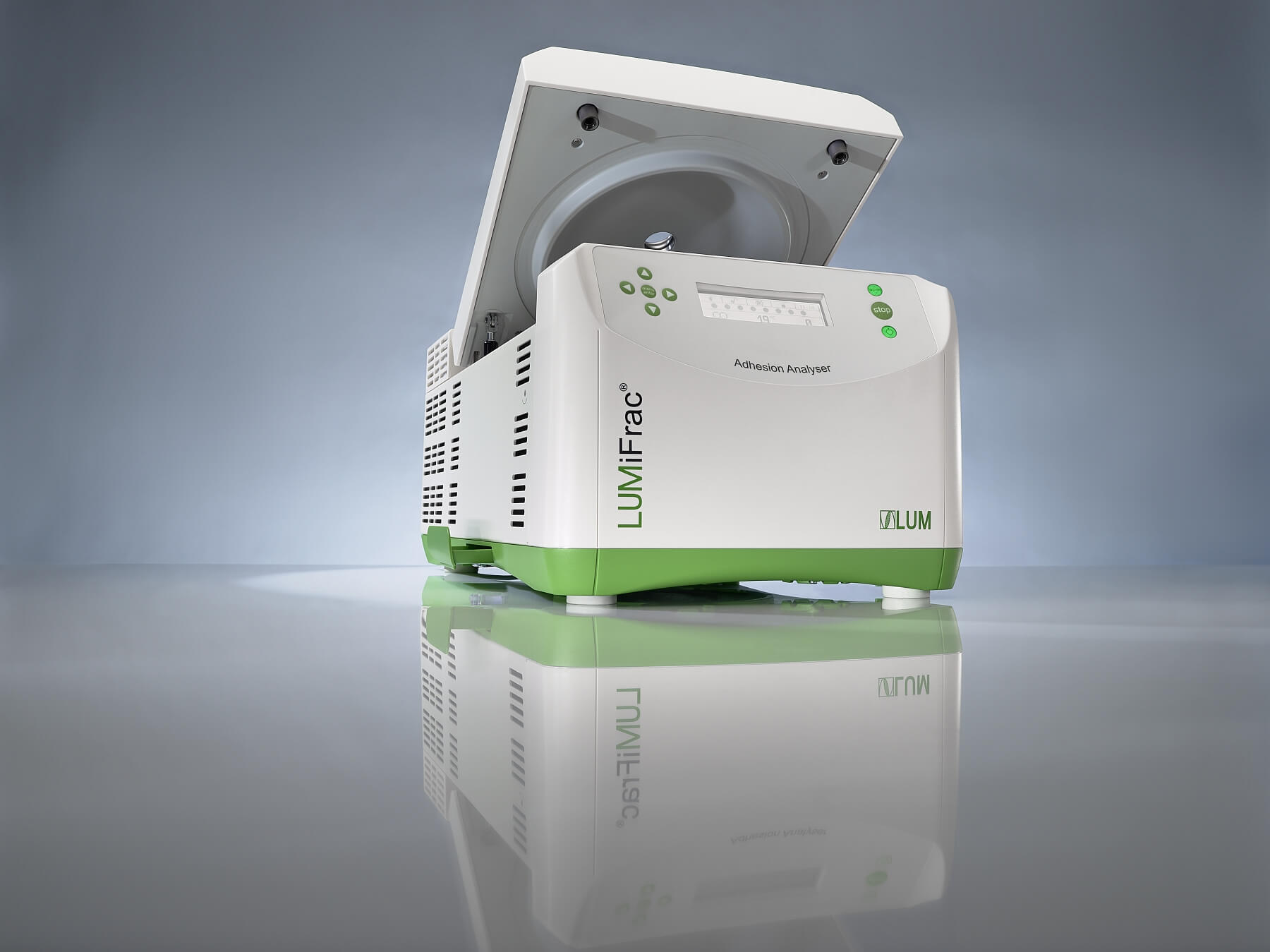

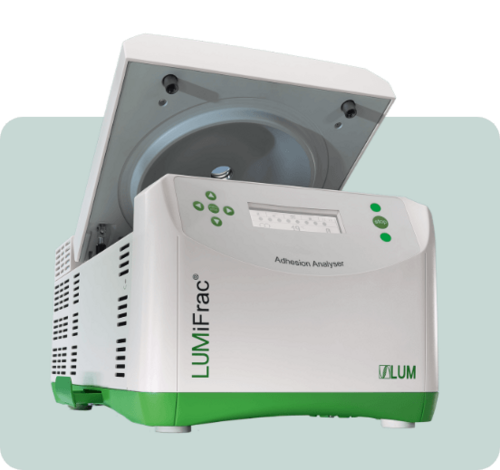

LUMiFrac® – An innovative instrument for adhesion and cohesion determination

Winner of the innovation prize Berlin-Brandenburg 2012

The LUMiFrac is the new benchmark for determining adhesive strength (winner of the Berlin-Brandenburg 2012 Innovation Award). It employs centrifugal forces to stress multiple samples at once. It provides adhesive and tensile strength as well as shear strength as an absolute physical quantity in N/mm² (MPa).

The LUMiFrac accomplishes this by directly applying an incrementally increasing centrifugal force to the specimen being tested. It determines with high resolution the RPM at the moment of fracturing (employing CAT-Technology = Centrifugal Adhesion Testing Technology).

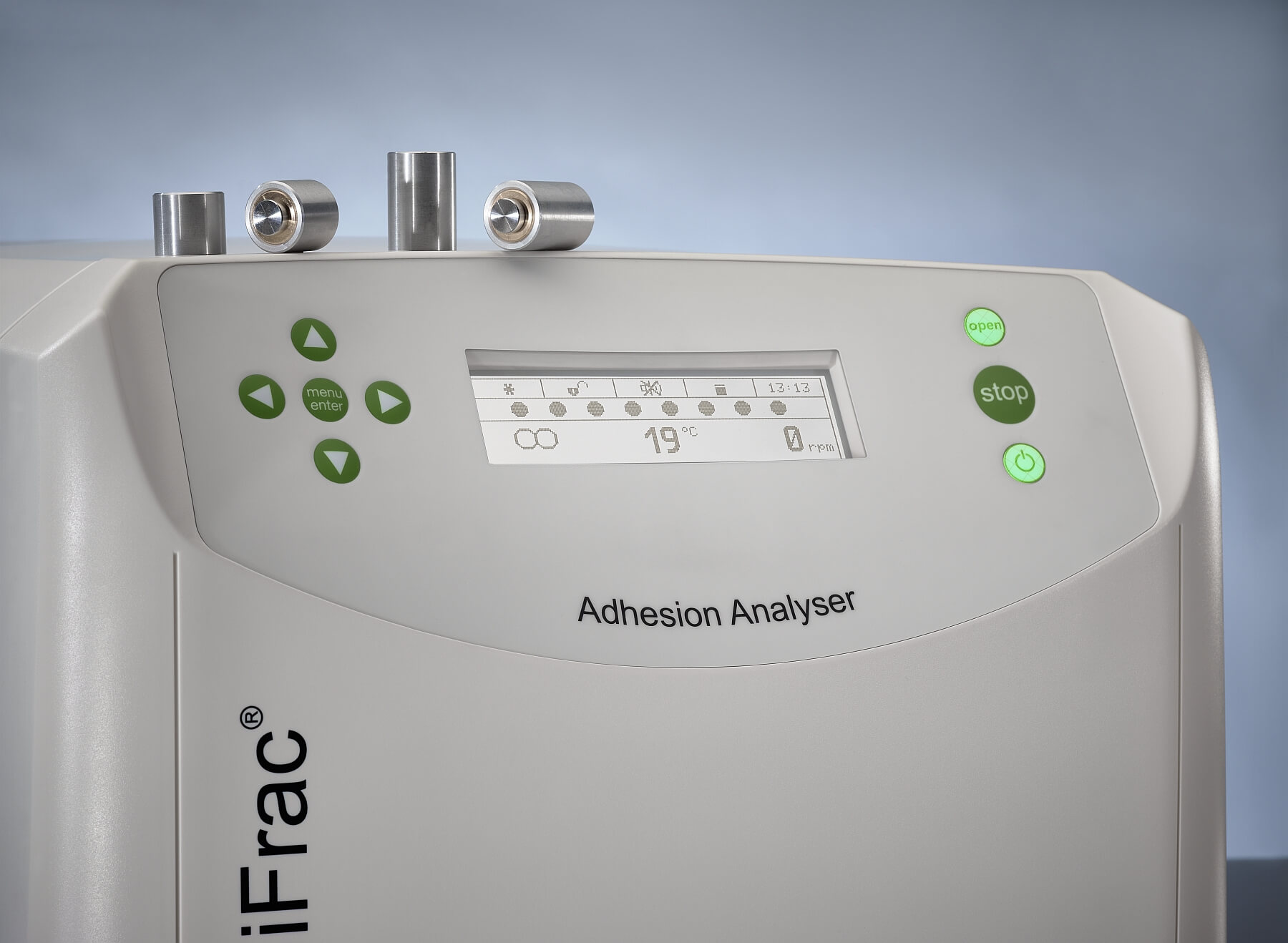

All data is transmitted to the well-known and popular operating software SEPView, which automatically calculates and displays the critical force/strength of failure in real time. Furthermore, it allows to analyze, compare & calculate statistics and combine results for up to tens of samples. Related data, as figures of fracture pattern, may be taken into account as well.

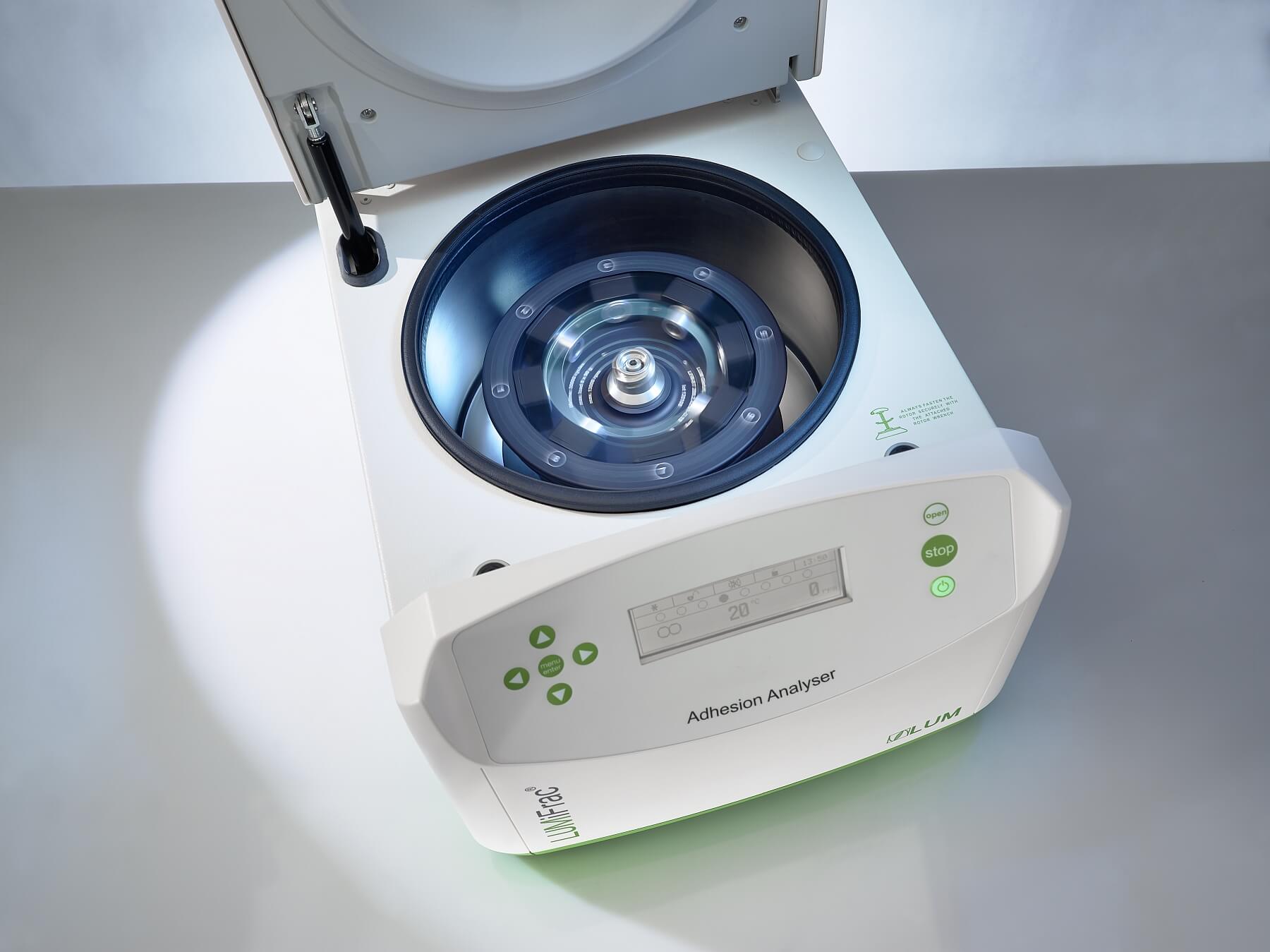

Test sample positioning is as simple as 1-2-3. No clamping or special precautions are needed. Just slide up to 8 samples into marked rotor locations and you are ready to go.

The unique multisample approach of testing 8 samples simultaneously results in an unparalleled accuracy and reduces measuring time by 85%. Starting as an idea for an easier and time-saving determination of adhesive properties, the multipatented new adhesion testing technology now revolutionizes the analysis of your composite materials and bonded parts. You can even work with multi-layered films; having an immense variety of applications.

The LUMiFrac is a research and QC tool for the adhesive formulation and surface treatment industry; lacquer coatings, joint wood products, composite materials in automotive and aircraft industries, adhesive tapes, multilayer foils for packaging or thin metal films on plastics and optical substrates, e.g., eyeglasses, mirrors, and many more.

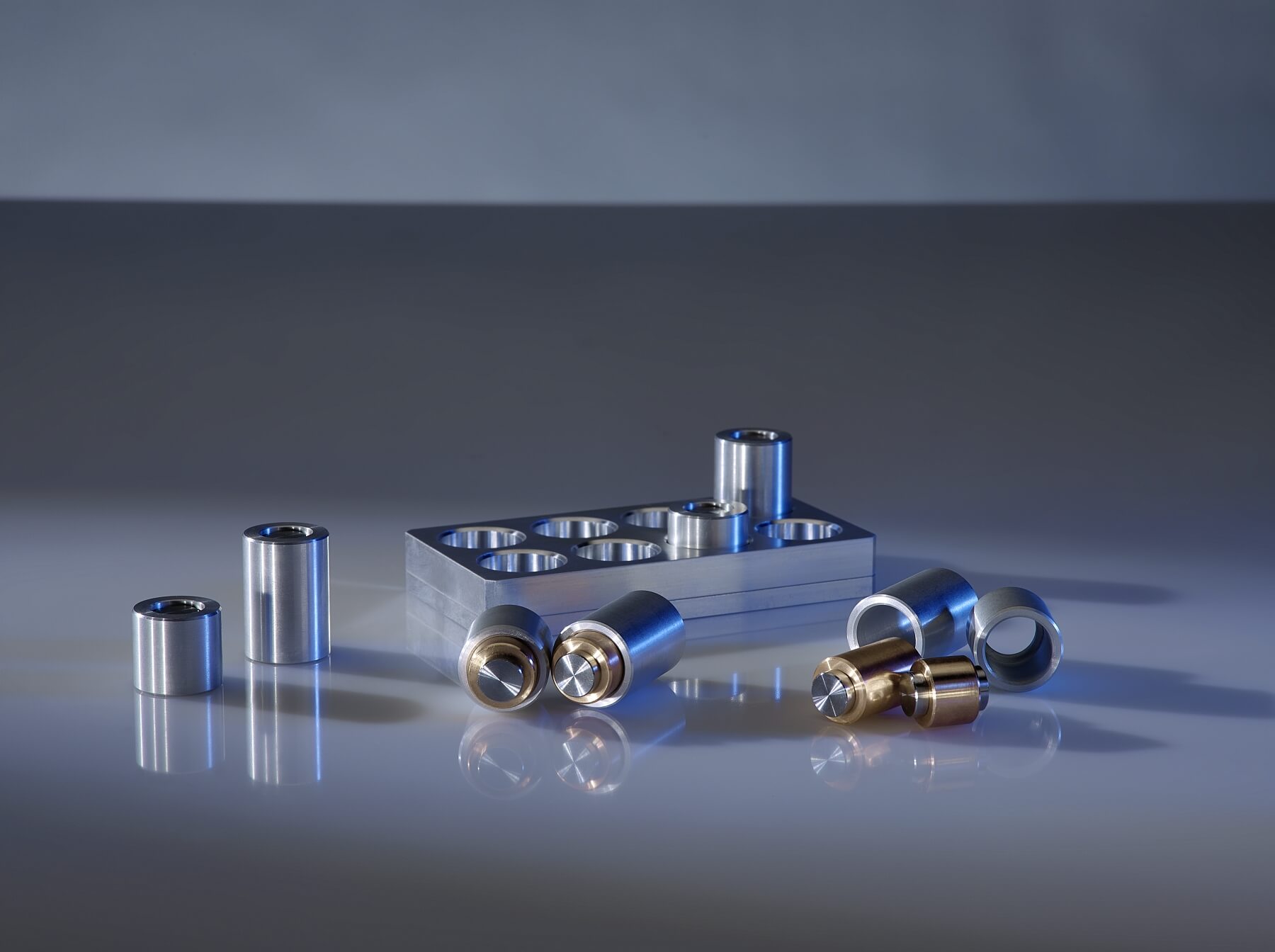

Different test stamps are available to cover more than enough material combinations and to enable a wide range of applied loads. In order to facilitate sample preparation specially designed tools are available. Combine everything you have just read, put it into action, and it makes for not exceptionally accurate and reproducible data, but also for an exceptionally happy user.

The LUMiFrac comes certified, factory precalibrated and is ready-to-go.

International norms and guidelines

THE LUMiFrac® MEETS THE FOLLOWING STANDARDS

ISO 4624

DIN EN 13144

JIS K 5600-5-7

DIN EN 15870

DIN EN 14869-2

ASTM D4541

ISO 9211-4

Grafik Karriere

Material overview

The following materials can be analyzed with the LUMiFrac®

Coatings
Cyanoacrylates
Decorative coatings
Epoxy adhesives
Films
Foils
  Anti-corrosion coatings
Laminates
Metallised polymers
Optical coatings
Polyurethanes



grafik_info

APPLICATION AREAS

LUMiFrac® in action

Standardised short time measurements for QC,
testing of tensile and shear strength of bonded joints:
- Cyanoacrylates, epoxy adhesives, polyurethanes, adhesive tapes, sealings...

Determination of adhesive strength of coatings:
- Anti-corrosion coatings, decorative coatings,
metallized polymers, optical coatings...

Composites:
- multiple material compounds, interconnections,
lightweight construction...

Surface treatment

Long-term fatigue testing:
- Alternating loads, different temperatures



Download & Technical Data

Technical data LUMiFrac®

Load range 0.1 N-6.5 kN
Tensile strength up to 80 MPa
Measurement time 1 min up to 99 h, depending on task and objective
Conformity ISO 4624; DIN EN 13144; JIS K 5600-5-7; DIN EN 15870; DIN EN 14869-2, ASTM D4541 und ISO 9211-4
Samples up to 8 simultaneously
Sample dimension max. 30 mm x 30 mm x >1 mm
Adherent area diameter 7 mm, 10 mm and customized
Test stamp material metal or non-metal
Test stamp weight 4.1 g - 38.7 g (W/Cu up to ca. 58 g)
Dimensions (W x H x D), weight 38 cm x 29.6 cm x 64 cm, 56kg
Rotor speed 100–13,000 rpm
Temperature control –11°C to +40 °C
Data interface USB
Power consumption 100 V, 120 V, 230 V; 50/60 Hz max. 1050 W
