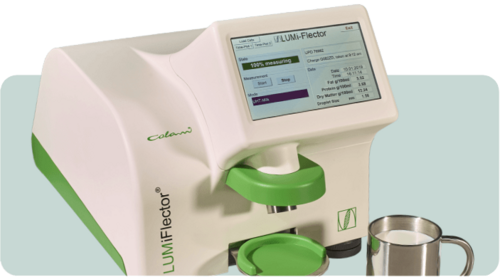

LUMiFlector®

Determination and monitoring of product parameters

Inline & at-line analysis



send enquiry watch video

Exceptional possibilities

The LUMiFlector® offers these highlights

  • Broad range of applications
  • Fast monitoring
  • Automatic process control
  • Efficient screening and QA
  • No preparation of the sample
  • No use of chemicals
  • No direct contact of sensors with the product
  • Easy to clean & easy to handle
  • Self-training
  • Low-maintenance
  • Stable and robust system

LUMiFlector® at-line - Fast monitoring in the laboratory - or directly on the production line

No direct contact of sensors with the product

The LUMiFlector® is a powerful measuring instrument for product parameter determination & monitoring. The innovative patented MRS-Technology® is the core of the instrument. It quantifies parameters of manifold products – no sample preparation, no chemicals. Application fields include food, feed, pharmaceutical, biotechnology products and medical nutrition and beyond

Grafik Karriere

Application areas

LUMiFlector® at-line in action

Quantification of specification of products based on suspensions or emulsions
Characterization of product properties resulting from dispersibility, homogenization, dilution
Automatic production monitoring and control
Process optimization
Milk standardization
Fast quality assessment
Large variety of liquid and semi-liquid products, i. e. dairy products, enteral nutrition, feed products, starch, soybean products, cells, yeast, suspensions, beverages, spicy sauces, dips, ketchup, slurries
Biotechnology
Determination of product specifications: fat, protein & total solids




grafik_info

Product version

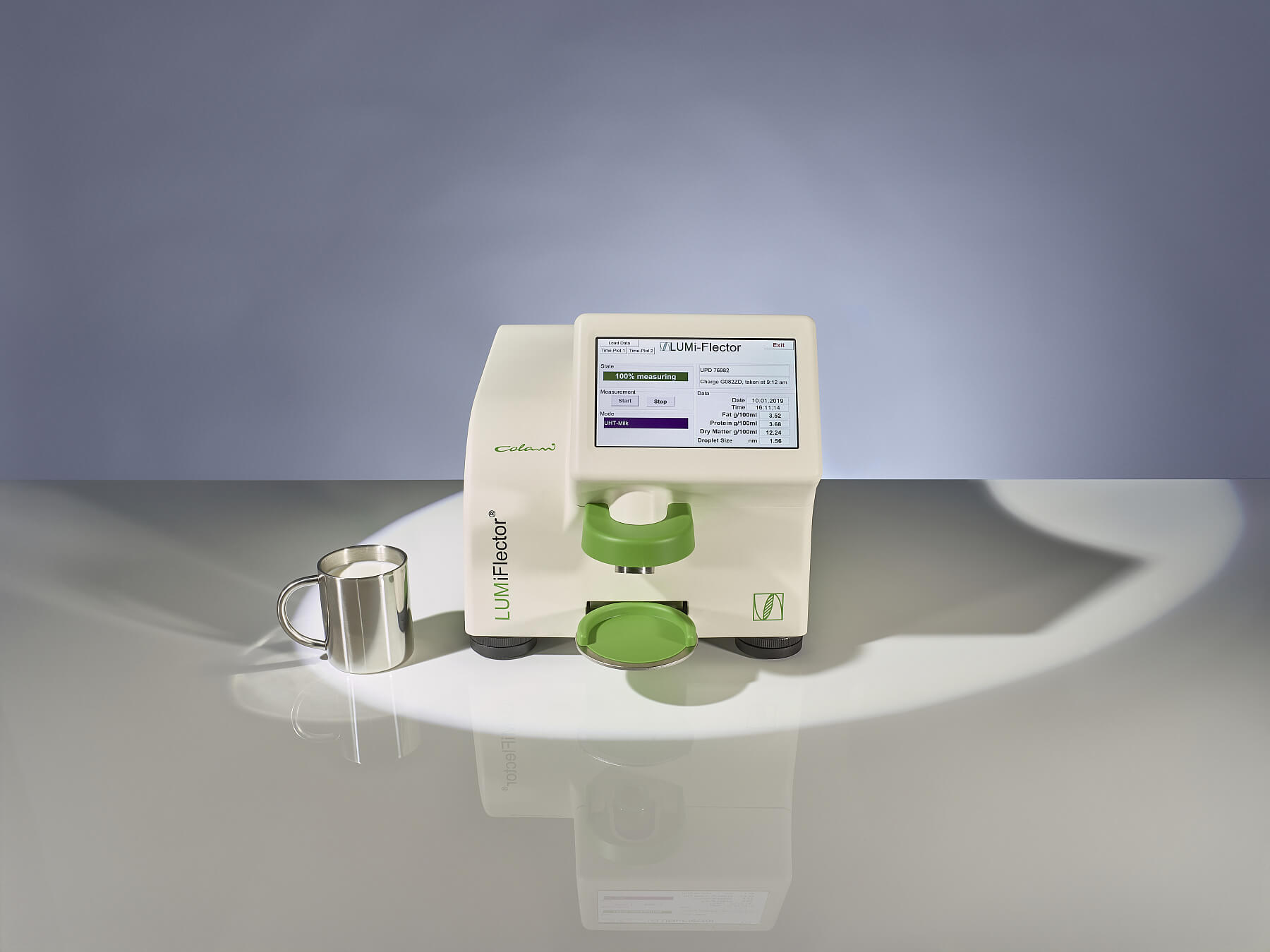

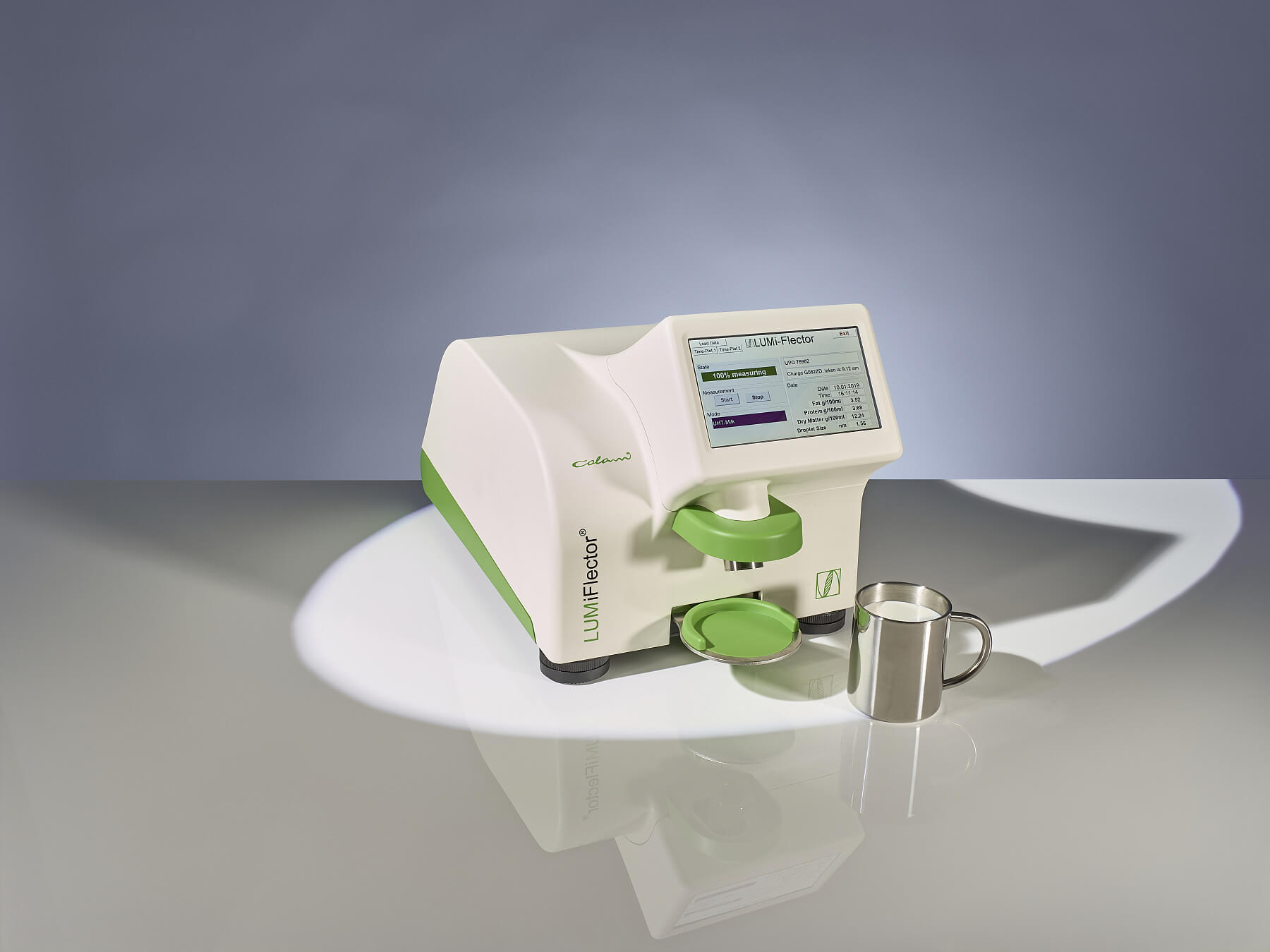

LUMiFlector At-Line

The At-line instrument is designed for process monitoring or quality control on a production site or in a laboratory. With its small footprint it can be easily placed besides the production line or in a QA/QC laboratory.

No chemicals, no additional waste, no additional costs. The optical interface is easily accessible and easy to clean, with just water and soap.

The instrument comes with a self-explaining user-friendly interface only. A short training of the operator is sufficient, no need for complicated or time-consuming training. Easy cleaning, handling, measurement, installation & operation guaranteed.



Download & Technical Data

Technical Data LUMiFlector®

Measuring principle Scattering, Refraction, Fluorescence
Measurement time < 20 s
Quantities concentration of dispersed solids and/or liquid particles;
customer-defined values

Sample
Type Emulsions, Suspensions
Volume 260 ml (smaller volumes for highly reflective samples, customized cups available)

Technical Data
Light source(s) UV-VIS-NIR
Measurement cup Stainless steel
Calibrations (on-board) UHT / ESL milk (fat, protein, total solids)
Ambient temperature 10 to 35 °C
Product support up to 8 products programmable, 4 measurement quantities per product
Dimensions (W x H x D) (At-line) 30 cm x 30 cm x 58 cm, 12.5 kg
Spectrometer: 38 cm x 38 cm x 23 cm, 8 kg
Industrial PC: 38 cm x 38 cm x 23 cm, 9 kg
Process interface: VARINLINE®: DN 25-150 x 25 cm3, 1.5 kg
(to be ordered separately)
Contact

Individual advice is important to us

We will be happy to advise you on our equipment, processes and technologies.
